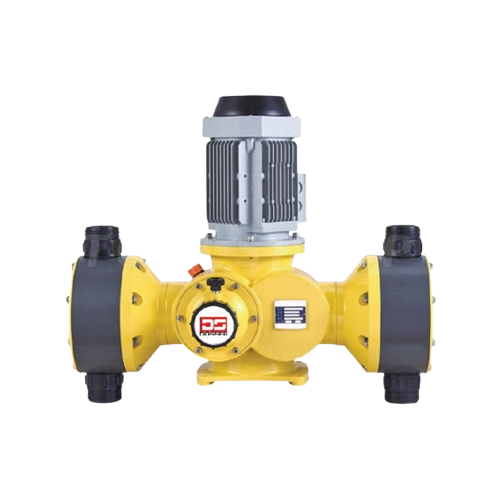

DOSSER Metering Pump Series MMG3

DOSSER Metering Pump Series MMG3 เป็นปั๊มจ่ายสารเคมี แบบไดอะแฟรม ขับเคลื่อนด้วยมอเตอร์  หัวปั๊มคู่ อัตราการไหลสูง การออกแบบที่ขนาดเล็กกะทัดรัด ง่ายต่อการติดตั้ง ด้วยหัวปั๊มคู่นี้ ทำให้สามารถประหยัดพลังงาน มีความสามารถในการจ่ายอัตราการไหลสูงถึง 3600 ลิตรต่อชั่วโมง และแรงดันสูงถึง 5 บาร์

DOSSER MMG3 Series metering pump is a diaphragm-type chemical feed pump driven by a motor. It features a dual pump head, high flow rate, compact design, and easy installation. With this dual pump head, it can save energy while providing high flow rates of up to 3600 liters per hour and high pressures of up to 5 bars.

ปั๊มโดส หรือมิเตอร์ริ่งปั๊ม DOSSER รุ่น MMG3 Series

DOSSER Metering Pump Series MMG3 เป็นปั๊มจ่ายสารเคมี แบบไดอะแฟรม ขับเคลื่อนด้วยมอเตอร์ หัวปั๊มคู่ อัตราการไหลสูง การออกแบบที่ขนาดเล็กกะทัดรัด ง่ายต่อการติดตั้ง ด้วยหัวปั๊มคู่นี้ ทำให้สามารถประหยัดพลังงาน มีความสามารถในการจ่ายอัตราการไหลสูงถึง 3600 ลิตรต่อชั่วโมง และแรงดันสูงถึง 5 บาร์

DOSSER Metering Pump Series MMG3

DOSSER Metering Pump Series MMG3 is a diaphragm-type chemical feed pump driven by a motor. It features a dual pump head, high flow rate, compact design, and easy installation. With this dual pump head, it can save energy while providing high flow rates of up to 3600 liters per hour and high pressures of up to 5 bars.

คุณสมบัติ

  • อัตราการไหล: 1300 L/h -3600 L/h (50Hz)
  • แรงดัน: 3-5 บาร์
  • อุณหภูมิ: จาก 0-70 ℃ (158 ℉)
  • ปรับจังหวะ: 0-100%
  • ทางดูด: 1.5m
  • ความแม่นยำ: ± 2% ของจุดที่ตั้งไว้

Feature

  • Flow rate: 1300 L/h – 3600 L/h (50Hz)
  • Pressure: 3-5 bar
  • Temperature: from 0-70 ℃ (158 ℉)
  • Stroke adjustment: 0-100%
  • Suction lift: 1.5m
  • Accuracy: ± 2% of the set point.

วัสดุ

  • หัวปั๊ม: PVC, PTFE, SS304, SS316
  • ไดอะแฟรม: ไดอะแฟรมคอมโพสิต PTFE
  • เช็ควาล์ว: PVC, PTFE, SS304, SS316 (เหมือนกับการเลือกหัวปั๊ม)
  • บอลวาล์ว: เซรามิก, SS304, SS316

Material

  • Pump head: PVC, PTFE, SS304, SS316
  • Diaphragm: PTFE composite diaphragm
  • Check valve: PVC, PTFE, SS304, SS316 (same as pump head selection)
  • Ball valve: Ceramic, SS304, SS316

แหล่งจ่ายไฟ

  • 380V 3 เฟสบนมาตรฐาน, เฟสเดียวหรือแรงดันไฟฟ้าอื่น ๆ ตามคำขอ; มีมอเตอร์ป้องกันอดีตให้ตามคำขอ

Power Supply

  • 380V 3 phase as standard, single phase or other electrical voltages are available upon request. Motors with built-in protection can be provided upon request.

SPECIFICATION
