FLOAT SWITCH Sanco FA-Series

สวิตซ์ลูกลอย SANCO รุ่น FA Series เป็นสวิตซ์ลูกลอยแบบสายเคเบิล ออกแบบมาใช้สำหรับหย่อนหรือจุ่มลงในบ่อหรือถังน้ำหรือน้ำเสียหรือของเหลวอื่นๆ เพื่อเตือนหรือควบคุมระดับของเหลวนั้นๆ เหมาะสำหรับระบบบำบัดน้ำเสียหรือน้ำที่มีตะกอน

FLOAT SWITCH Sanco FA Series is a cable float switch designed to be used for immersion or submersion in a pool, tank, wastewater, or other liquid to alert or control the level of that liquid. It is suitable for wastewater treatment systems or water with sediments.

สวิตซ์ลูกลอย SANCO รุ่น FA-1050-6

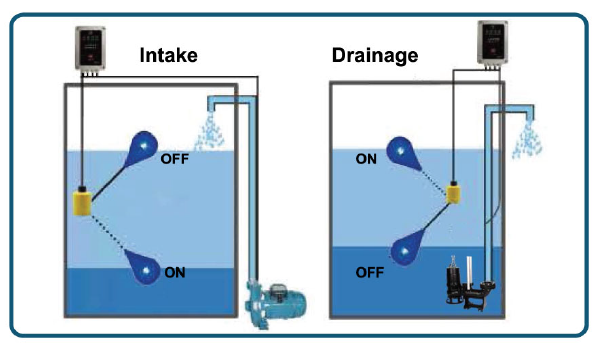

FLOAT SWITCH Sanco FA-Series หรือ สวิตช์ลูกลอย คือ เซ็นเซอร์ที่ใช้วัดระดับของน้ำในภาชนะ จะเป็นสวิตช์ลูกลอยแบบสายเคเบิ้ล ที่ราคาประหยัด ออกแบบมาใช้สำหรับหย่อน หรือจุ่มลงในบ่อหรือถังน้ำหรือน้ำเสียหรือของเหลวอื่นๆ เพื่อใช้ในการเตือนหรือควบคุมระดับของเหลวนั้นๆ ร่วมกับระบบควบคุมปั๊มตามความต้องการของผู้ใช้งาน ซึ่งการติดตั้งลูกลอยจะลอยทำมุมประมาณ 45 องศา เพื่อความแม่นยำในการตัดต่อการทำงาน

Float Switch คืออุปกรณ์วัดระดับที่มีความสำคัญอย่างมาก ที่สามารถนำไปใช้ประโยชน์ได้อย่างมาก อาทิ เช่น การควบคุมระดับน้ำดีและน้ำเสียภายในอาคารที่พักอาศัย สำนักงาน ห้างสรรพสินค้า โรงแรม การระบายน้ำลานจอดรถชั้นใต้ดิน สระว่ายน้ำ ถังเก็บน้ำดี ระบบบำบัดน้ำเสีย ถังเก็บน้ำเสีย ฯลฯ

FLOAT SWITCH Sanco FA-1050-6

FLOAT SWITCH Sanco FA-Series, also known as a float level switch, is a sensor used to measure the level of liquid in a container. It is a cost-effective cable-type float switch designed for submersion or immersion in water tanks, sewage tanks, or other liquids. It is used to alert or control the level of the specific liquid in conjunction with the user’s pump control system. The float switch is typically installed at a 45-degree angle for accurate operation and seamless integration.

The Float Switch is an essential level measuring device that can be highly beneficial in various applications. For example, it is commonly used for controlling water levels in residential buildings, offices, shopping malls, hotels, underground parking drainage, swimming pools, water storage tanks, wastewater treatment systems, and more.

คุณสมบัติ

  • ทุ่นลอย : กรวยทรงกลมสามเหลี่ยม ขนาดใหญ่ซึ่งช่วยให้ลอยตัวพิเศษโดยเฉพาะอย่างยิ่งในน้ำเสีย
  • ลูกลอย : กรวยทรงกลมทรงสามเหลี่ยมทำงานได้ 360 องศาในน้ำเสียหรือของเหลวที่มีเศษขยะจำนวนมาก

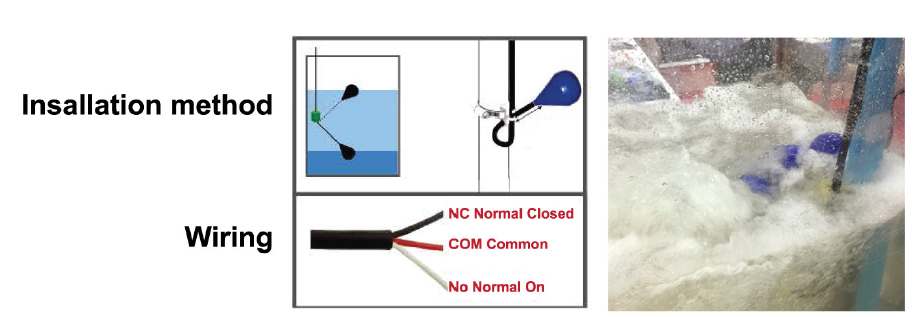

  • การควบคุมระดับของเหลว: สวิตช์ทำมุม 45 องศา
  • วัตต์: 16A 250VAC 21A 250VAC 25A 250VAC
  • การควบคุมปั๊ม: เชื่อมต่อกับปั๊มเพื่อควบคุมระดับของเหลว
  • น้ำหนัก: 300 กรัม

Feature

  • The Float Valve: It is a large, round, triangular-shaped buoy that provides exceptional buoyancy, especially in wastewater.
  • The Float Ball: It is a round, triangular-shaped buoy that operates at 360 degrees in wastewater or liquids with a large amount of debris.
  • Liquid Level Control: The switch operates at a 45-degree angle.
  • Watts: 16A 250VAC, 21A 250VAC, 25A 250VAC.
  • Pump Control: It is connected to the pump to control the liquid level.
  • Weight: 300 grams.

SPECIFICATION

Model SANCO FA-1050-6
Switch Micro switch
Voltage 16A 250VAC
Working Pressure 2kgf/cm2 (20M under water)
Working Temp. -30˚C -60˚C
Float Material ABS
Cable Lemgth 6M
Resistance Oil amd Corrodion Resistant

สวิทช์ลูกลอย SANCO รุ่น FA S8000-6 Series

ลูกลอย Sanco รุ่น FA-S8000-6 Series เป็นอุปกรณ์ที่ใช้ควบคุมระดับน้ำในถังหรือในบ่อ เพื่อส่งสัญญาณไปที่ปั๊ม วัสดุผลิตจากสแตนเลส SUS304/316 ใช้สวิตซ์คอนโทรลเป็นแบบ mercury switch ระดับการป้องกัน IP68 ความยาวสายไฟ 6 เมตร ใช้งานได้ทั้งน้ำดีและน้ำเสีย

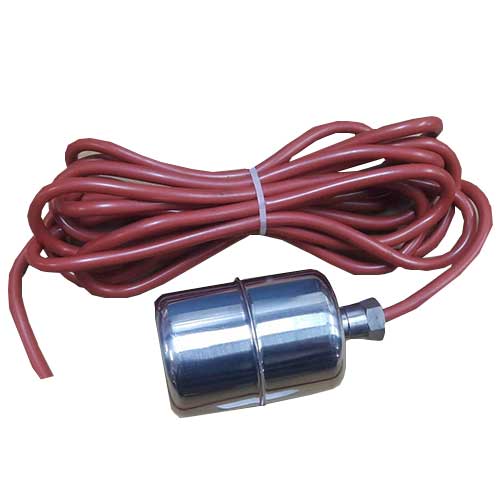

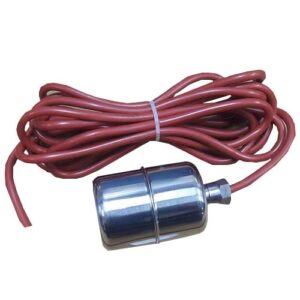

FLOAT SWITCH Sanco FA S8000-6 Series

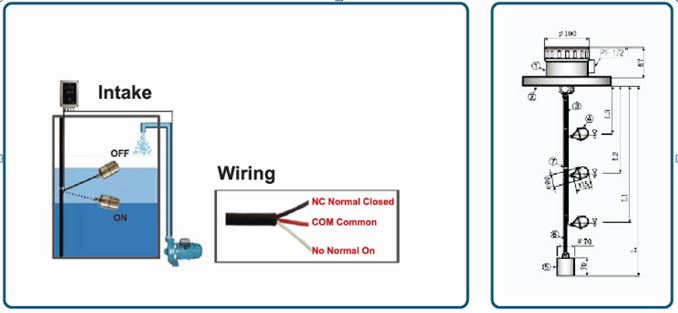

FLOAT SWITCH Sanco FA S 8000-6 Series​ is a device used to control water levels in tanks or ponds and send signals to the pump. It is made of stainless steel SUS304/316 and uses a mercury switch as a control switch. It has an IP68 protection rating and comes with a 6-meter-long cable. It can be used for both clean water and wastewater applications.

SPECIFICATION

MODEL SANCO FA-S8000-6
SWITCH MERCURY SWITCH
Voltage 1A 250VAC
Working Pressure 2kgf/cm² (100M under water)
Working Temp 200°c
FLOAT Material SUS 304/316
FLOAT Size Ø73/100
CABLE Material SILICON
CABLE Cores White,Red,Black,3C,2C
Protection LVL IP68
Operatinal Life 50,000
Cable Length 6M
