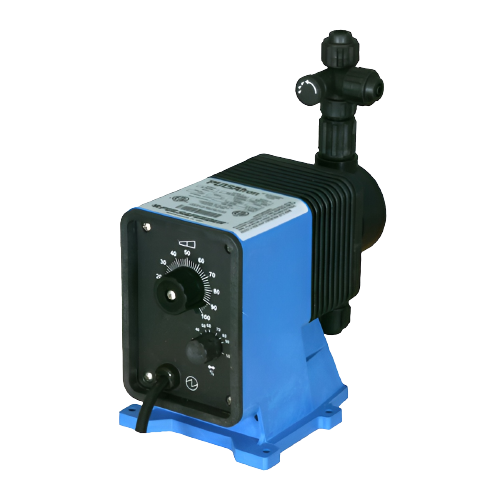

PULSA FEEDER PULSAtron Series C

PULSAtron Series C  ฟีเจอร์การควบคุมเพิ่มเติมที่เลือกใช้รวมถึงอัตราการตีจากภายนอก ตัวเลือกระหว่างสวิตช์ชั่วขณะเพื่อเริ่มการทำงานของปั๊ม หรือสวิตช์เปิด/ปิดสลับสำหรับการควบคุมด้วยตนเองทั้งหมด

The PULSAtron Series C offers manual control stroke length adjustment with a fixed stroke rate. Optional control features include external pace, a choice between momentary on/off switch for priming the pump, or a toggle on/off switch for manual override of all control functions.

ปั๊มจ่ายสารเคมี มิเตอร์ริ่งปั๊ม PULSA FEEDER PULSAtron Series C

PULSAtron Series C ฟีเจอร์การควบคุมเพิ่มเติมที่เลือกใช้รวมถึงอัตราการตีจากภายนอก ตัวเลือกระหว่างสวิตช์ชั่วขณะเพื่อเริ่มการทำงานของปั๊ม หรือสวิตช์เปิด/ปิดสลับสำหรับการควบคุมด้วยตนเองทั้งหมด มีรุ่นทั้งหมด 4 รุ่น ซึ่งสามารถรองรับแรงดันได้สูงสุดถึง 80 psi (5.6 bar) และความจุการไหลได้สูงสุดถึง 30 gpd (4.7 lph) มีอัตราการแต่งตั้ง 10:1 ประสิทธิภาพในการจ่ายสารมีความเป็นซ้ำซ้อนภายใน ± 3% ของความจุสูงสุด เป็นเครื่องปั๊มที่มีมายาวนานกว่า 25 ปีแล้ว ปั๊ม PULSAtron ได้รับการอนุมัติจากหน่วยงาน ETL, ETL Sanitation, CE และ NSF 61 (สำหรับโมเดลวัสดุ PVDF และโมเดลหัวกรองอากาศ) ซึ่งเป็นการรับรองคุณภาพ

PULSA FEEDER PULSAtron Series C

Optional control features include external pace, a choice between momentary on/off switch for priming the pump, or a toggle on/off switch for manual override of all control functions. Four distinct models are available, having pressure capabilities to 80 psi (5.6 bar), and flow capacities to 30 gpd (4.7 lph), with a turndown ratio of 10:1. Metering performance is reproducible to within +/- 3% of maximum capacity.Over 25 years of excellence, PULSAtron pumps carry agency approvals of ETL, ETL Sanitation, CE and NSF 61 (PVDF material and Degassing Head models).

คุณสมบัติ

  • การควบคุมด้วยตนเองโดยการปรับความยาวของการตีที่สามารถปรับได้ออนไลน์ (อัตราการตีคงที่)
  • กันน้ำได้อย่างมีประสิทธิภาพ
  • การเติมน้ำที่ปลอดภัยและง่ายดายด้วยชุดวาล์วรั่วซึมที่ทนทานและไม่ทำให้เกิดรอยรั่ว
  • วงจรการทำงานที่ปลอดภัย
  • การป้องกันวงจรจากแรงดันและกระแสไฟฟ้าที่ผิดปกติ
  • การป้องกันโซลินอยด์ด้วยการเปิด/ปิดโดยอัตโนมัติเมื่อเกิดการร้อนเกินไป
  • มีการดับเสียงภายในเพื่อลดเสียงรบกวน
  • ระบบวาล์วบอลเช็คแบบมีการนำทางเพื่อลดการถลอกย้อนและเพิ่มคุณสมบัติการเติมน้ำที่ยอดเยี่ยม
  • ชิ้นส่วนที่เคลื่อนไหวน้อย สามารถติดตั้งกับผนังได้
  • การเติมน้ำที่ปลอดภัยและง่ายดายด้วยชุดวาล์วรั่วซึมที่ทนทานและไม่ทำให้เกิดรอยรั่ว (มาตรฐาน)
  • การควบคุมเพิ่มเติม: อัตราการตีจากภายนอกพร้อมตัวเลือกเลือกการควบคุมอัตโนมัติหรือด้วยตนเอง

FEATURES

  • Manual control by on-line adjustable stroke length (fixed stroke rate)
  • Water resistant
  • Safe and easy priming with durable leak-free bleed valve assembly
  • Highly reliable timing circuit
  • Circuit protection against voltage and current upsets
  • Solenoid protection by thermal overload with auto-reset
  • Internally dampened to reduce noise
  • Guided ball check valve systems to reduce back flow and enhance outstanding priming characteristics
  • Few moving parts, Wall mountable
  • Safe & Easy Priming with durable leak-free bleed valve assembly (standard)
  • Optional Control: External pace with auto/manual selection

SPECIFICATION

Pump Head Materials GFPPL, PVC, PVDF, 316 SS
Fitting Material Available GFPPL, PVC, PVDF
Bleed Valve Same as fitting and check valve selected (except 316SS)
Turndown Ratio 10:1
Seat O-Rings Available PTFE, CSPE, Viton
Balls Available Ceramic, PTFE, 316 SS, Alloy C
Diaphragms PTFE-faced CSPE-backed
Tubing Available Clear PVC, White PE, PVDF
Power Input 115 VAC - 50/60 HZ -1 ph, 230 VAC - 50/60 HZ - 1 ph
Peak Input Power 130 Watts, Average Input Power At Max SPM: 50 Watts
Average Current Draw 115 VAC: Amps - 0.6, 230 VAC: Amps - 0.3
Product Options

Liquid low level option available to prevent loss of prime
Automatic control by external pacing with prime switch

Accessories Dampeners Gauges KOP Kits Pre-Engineered Systems Process Controllers Tank
